> muffle furnace

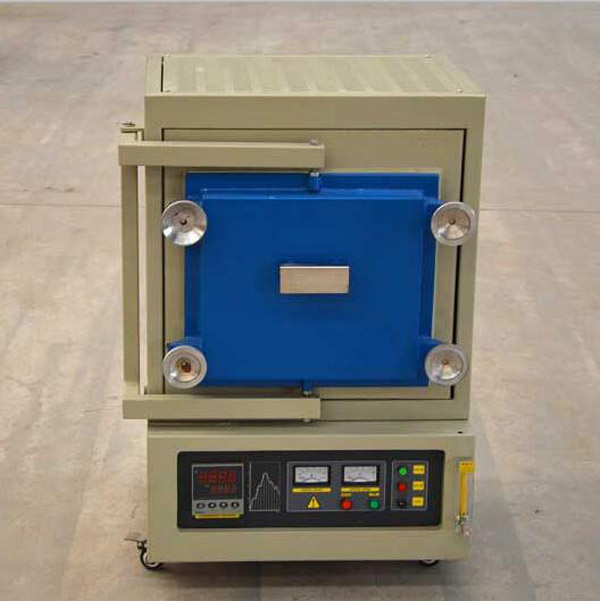

1700 Celsius Box type heat treatment atmosphere furnace with max vacuum -0.1Mpa - 副本
- size: 400*200*200mm
- working temp:1700C
- heating element: mosi2 heater
- Product description: size: 400*300*300mm working temp:1700C sic heating element: mosi2 heater
PRODUCT INTRODUCTION
1700 Celsius Box type heat treatment atmosphere furnace can protect material from oxidation and decarburization with flowing Nitrogen, Argon and other inert gas or pumped into vacuum.
1700 Celsius Box type heat treatment atmosphere furnace is an ideal equipment for sintering, reducing with inert-atmosphere in the labs of university, Research Institution and industrial company.
1700 Celsius Box type heat treatment atmosphere furnace has below outstanding feature:
1: Better leak tightness.
2: Better heating preservation,
3:Atmosphere can be controlled.
4:Safety and explosion provention.
5: Precise temperature control.
6: Max Vacuum can up to -0.1Mpa
|
Product Name: |
1700 Celsius Box type heat treatment atmosphere furnace |
|
Code No# |
SA2-9-12TP |
|
Max Tempearture: |
1700C(<3 Hours) |
|
Working Tempearature: |
1600C(Continuous) |
|
Chamber Size: |
400*300*300mm or customizable |
|
Furnace structure: |
Double Shell with fan cooling |
|
Temperature Controller: |
51 Segment programmable and PID auto control |
|
Temperature Accuracy: |
+/-1C |
|
Heating Elements: |
mosi2 heater |
|
Heating Rate: |
30C/Minutes(Suggestion<20C) |
|
Thermocouple: |
B Type |
|
Rated Power: |
12KW |
|
Rater Voltage: |
AC380V (50/60hz) 3 phase |
|
Net Weight: |
182kg |
|
Warranty: |
1 Year |
|
Certification: |
CE&ISO9001:2008 |
| Model No# | Chamber Size(mm) | Chamber Size(Inch) | Rated Power(KW) | Rated Voltage(V) |
| LS-1-12TP | 100*100*100 | 4"*4"*4" | 1 | 220 |
| LS-2-12TP | 200*150*150 | 8"*6"*6" | 2 | 220 |
| LS-6-12TP | 300*200*200 | 12"*8"*8" | 6 | 220 |
| LS-9-12TP | 400*300*300 | 16"*12"*12" | 9 | 380 |
| LS-12-12TP | 450*450*500 | 18"*18"*20" | 12 | 380 |
| LS-16-12TP | 600*600*600 | 24"*24"*24" | 16 | 380 |
