> muffle furnace

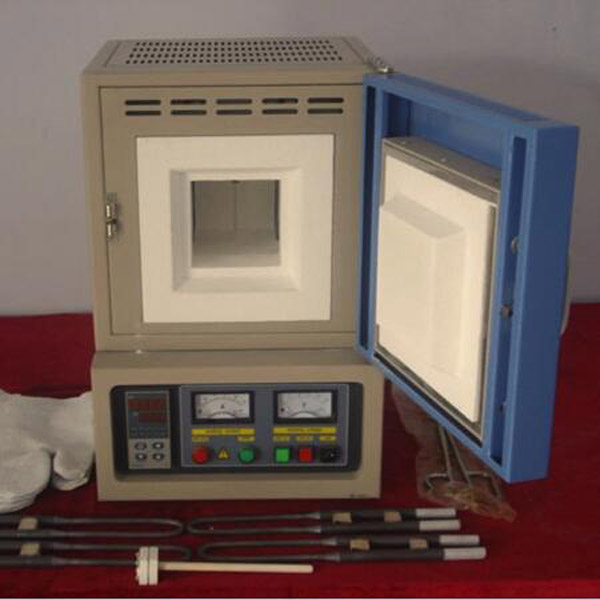

1700C laboratory bench-top muffle furnace
- size: 200*200*200mm
- working temp:1700C
- heating element: mosi2 heater
- Product description: size: 300*200*200mm working temp:1700C sic heating element: sic heater
PRODUCT INTRODUCTION
1700c High Temperature Laboratory Muffle Furnace
A High Temperature Muffle Furnace Features:
1 Heat up fast, 20° C /min.
2 Alumina ceramic lining, light in weight,
3 The heat preservation effect is good, save power.
4 30 period of programmable automatic control of heating process, high degree of automation.
B High Temperature Muffle Furnace Main Performance Indexes:
| Technical Data | Inside chamber Size |
300x200x200mm |
| Max. temperature | 1700 °C | |
| Working Temperature | 1600°C | |
| Temperature Control | 30-51 segments programmable and PID auto control | |
| Heating rate | 0~30'C/Min,suggest<=20'C/Min | |
| Temperature accuracy | ±1°C | |
| Heating Element | SiC rod | |
| Thermocouple | B type | |
| Furnace structure | Double shell with fan cooling | |
| Working Voltage | AC 380V,double phase 50/60Hz | |
| Max. Power |
9Kw |
The muffle furnace is packed in export standard wooden case outside, lined with sponge and foam.
It can be shipped by air, by sea, by land or by express delivery like DHL, FedEx, T/T, EMS an so on.
|
Model |
Chamber size(WxHXYmm) |
Max. Temperature |
|
LS-1700M |
150x150x150mm (6"x6"x6") |
1700 . C |
|
LS-1700M |
150x150x200mm (6"x6"x8") |
1700 . C |
|
LS-1700M |
200x200x200mm (8"x8"x8") |
1700 . C |
|
LS-1700M |
200x200x300mm (8"x8"x12") |
1700 . C |
|
LS-1700M |
250x250x300mm (10"x10"x12") |
1700 . C |
|
LS-1700M |
300x300x400mm (12"x12"x16") |
1700 . C |
|
LS-1700M |
350x350x400mm (14"x14"x16") |
1700 . C |
|
LS-1700M |
400x400x400mm (16"x16"x16") |
1700 . C |
|
LS-1700M |
500x500x500mm (20"x20"x20") |
1700 . C |
