> reaction bonded silicon carbide beam

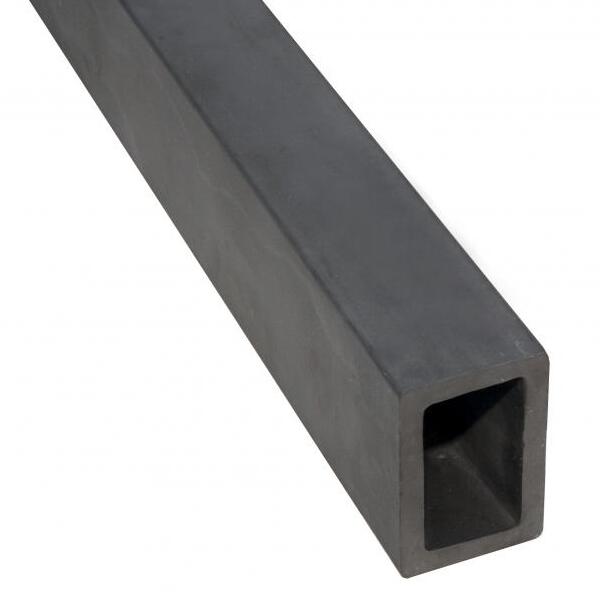

Sintering Sic Beam for Kiln
- material:sic
- size: 80*66*1200mm
- workding temperature: 1360C
- Product description: 1.High temperature tolerance 2.High thermal conductivity 3.Oxidation resistance 4.Corrosion resistance
PRODUCT INTRODUCTION
Sintering Sic Beam for Kiln
have superior rapid cooling and rapid heating resistance, wear resistance, oxidation resistance, high bending strength, no falling slag, no crazing, have a long time service life, easy to change, effective to control the uniform temperature inside the kilns.
RBSiC (SiSiC) Burner Tubes are widely used in shuttle kilns, tunnel kilns, roller kilns and other fuel
industry kilns.
RBSiC (SiSiC) Tube Technical Parameter:
|
item |
unit |
data |
|
temperature of application |
C |
1380 |
|
density |
g/cm3 |
>=3.02 |
|
open porosity |
% |
<0.1 |
|
bending strength |
Mpa |
250(20C) |
|
|
Mpa |
280(1200C) |
|
modulus of elasticity |
Gpa |
330(20C) |
|
|
Gpa |
300(1200C) |
|
thermal conductivity |
W/m.k |
45(1200C) |
|
coefficient of thermal expansion |
K-1*10-6 |
4.5 |
|
rigidity |
|
13 |
|
acid-proof alkaline |
|
Excellent |
