> silicon carbide heating element

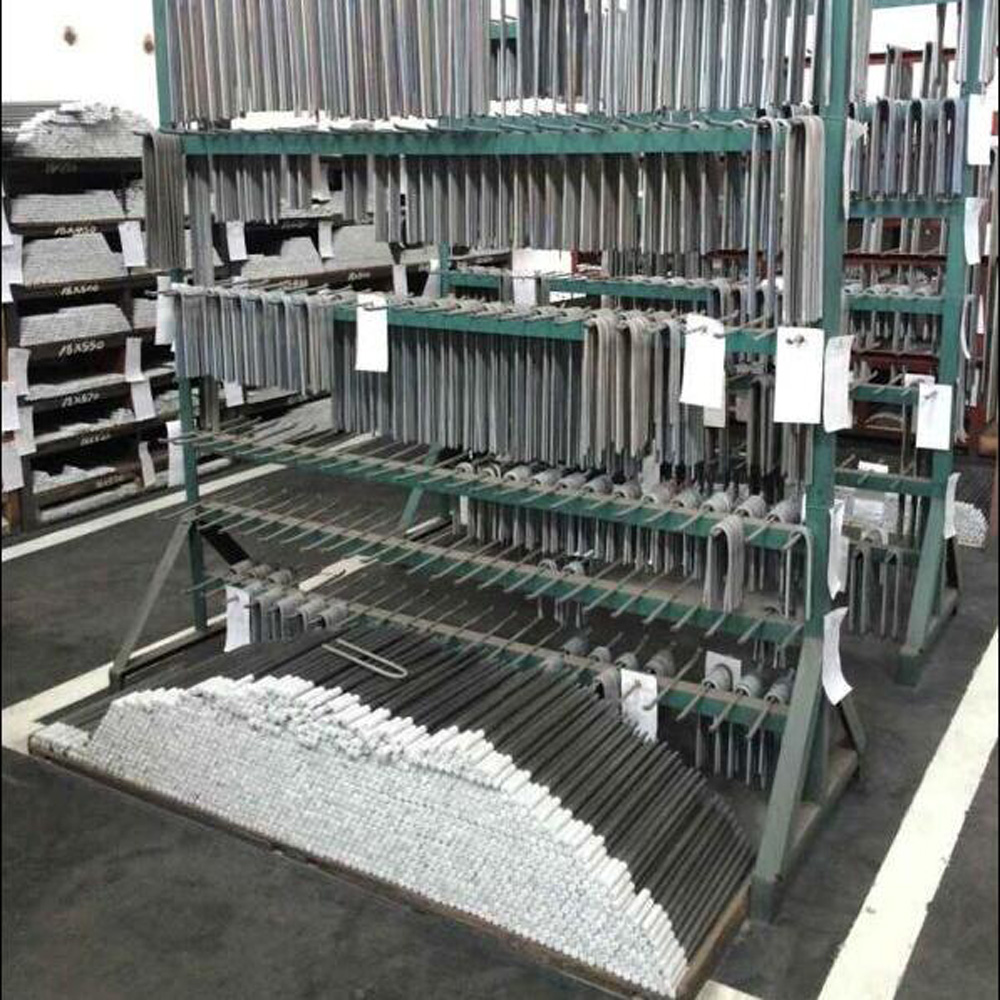

U type silicon carbide heating element
- Material: sic
- size: D25*L1000mm
- working temperature:1400C
- Product description: Material: sic size: D25*L1000mm working temperature:1400C
PRODUCT INTRODUCTION
3. Diameter 8mm to 55mm elements can be made according to your requirements.
4. Silicon carbide heating elements is a non-metal electric heating element made from SiC
as its main raw materials.
We are one of the leading manufacturers of Silicon Carbide (SiC) heating elements in Chinese market.
|
Dia(OD) (mm) |
Length of hot zone(HZ)(mm) |
Length of cold zone(CZ)(mm) |
Overall Length(OL)(mm) |
Range of Resistance(Ω) (ohms) |
|
8 |
100-300 |
60-200 |
240-700 |
2.1-8.6 |
|
12 |
100-400 |
100-350 |
300-1100 |
0.8-5.8 |
|
14 |
100-500 |
150-350 |
400-1200 |
0.7-5.6 |
|
16 |
200-600 |
200-350 |
600-1300 |
0.7-4.4 |
|
18 |
200-800 |
200-400 |
600-1600 |
0.7-5.8 |
|
20 |
200-800 |
250-600 |
700-2000 |
0.6-6.0 |
|
25 |
200-1200 |
250-700 |
700-2600 |
0.4-5.0 |
|
30 |
300-2000 |
250-800 |
800-3600 |
0.4-4.0 |
|
35 |
400-2000 |
250-800 |
900-3600 |
0.5-3.6 |
|
40 |
500-2700 |
250-800 |
1000-4300 |
0.5-3.4 |
|
45 |
500-3000 |
250-750 |
1000-4500 |
0.3-3.0 |
|
50 |
600-2500 |
300-750 |
1200-4000 |
0.3-2.5 |
|
54 |
600-2500 |
300-750 |
1200-4000 |
0.3-3.0 |
When you place an order of the Rod Shape SiC Heating Element, please give following information:
OD: Outer Diameter;
HZ: Length Of Hot Zone;
CZ: Length Of Cold Zone;
OL: Total Length
