> Al2Tio5 tube

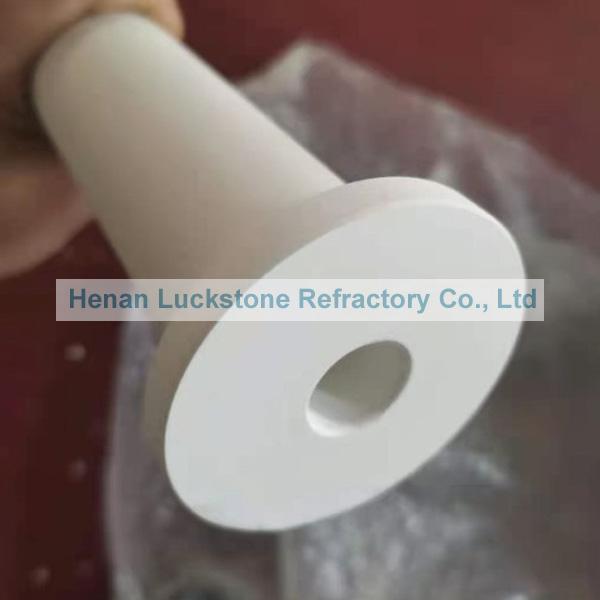

Al2Tio5 Ceramic Rsier Tube
- name:Al2Tio5 Ceramic Rsier Tube
- density: 3.2g/cm3
- work temp: 1400C
- size: φ120*600mm
- Product description: Al2Tio5 Ceramic Rsier Tube size: φ120*600mm work temp: 1400C density: 3.2g/cm3
PRODUCT INTRODUCTION
Al2Tio5 Ceramic Rsier Tube
Riser tube is a critical part of low pressure casting machines. Molten aluminum is transported by pressure from holding furnace via riser tube into a mould every 3-5 minutes.Traditional iron riser tube couldn't guarantee continuous casting and high quality because of its bad thermal shock resistance and short service life.So aluminum titante becomes the ideal material of riser tubes due to its low thermal expansion coefficient,good thermal shock resistance and no wetting by molten metals.The riser tubes produced by Taisheng with German technology has a long service life and reached the international advanced level.
Characteristic:
1.Excellent thermal shock resistance
2.No infiltration with the non-ferrous metal
3.Excellent corrosion resistance
4.Low thermal-expansion coefficient
5.The aluminum titanate lift tube can enhance the production efficiency and reduce the cost.
Technical parameters:
|
Item |
Sprue bush |
|
Al2O3% |
50-55 |
|
TiO2% |
40-45 |
|
Fe2O3% |
≤0.2 |
|
K2O+Na2O% |
≤0.02 |
|
Density (g/cm3) |
＞3.2 |
|
Heat conductivity (W/m.k) |
0.86 |
|
Flexural strength (Mpa) |
30-35 |
|
Porosity (%) |
＜8 |
|
Working temperature （℃） |
＜1400 |
Specification of normal riser tubes:
|
OD(mm) |
ID(mm) |
Length(mm) |
|
Φ78 |
Φ58 |
850 |
|
Φ100 |
Φ80 |
400 |
|
Φ120 |
Φ100 |
600，800 |
|
Φ130 |
Φ110 |
1063 |
|
Φ130 |
Φ100 |
750 |
|
Φ120 |
Φ70 |
1220 |
|
Φ120 |
Φ80 |
950 |
|
Φ100 |
Φ60 |
900 |
|
Φ114 |
Φ68 |
1100 |
|
Φ100 |
Φ60 |
970 |
|
Φ110 |
Φ63.5 |
900 |
|
Φ90 |
Φ61 |
850 |
|
Φ105 |
Φ75 |
1050 |
|
Φ120 |
Φ80 |
930 |
