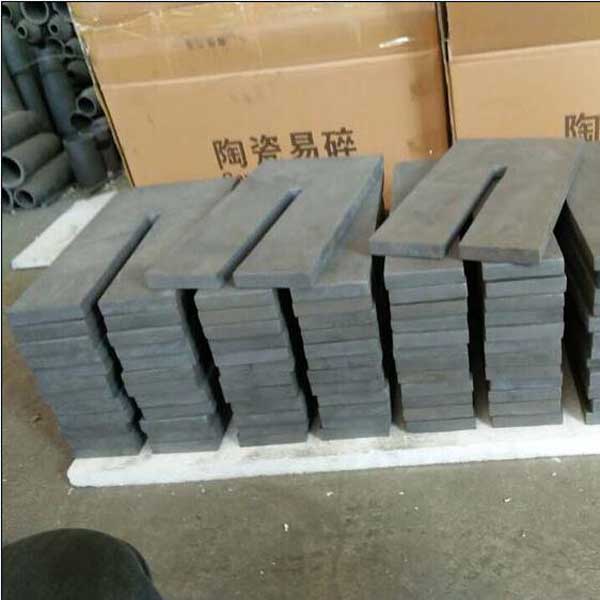

> sintering silicon carbide plate
high temperautre reaction bonded sic plates
- material:sic
- size: 400*300*10mm
- workding temperature: 1360C
- Product description: 1.High temperature tolerance 2.High thermal conductivity 3.Oxidation resistance 4.Corrosion resistance
PRODUCT INTRODUCTION
RBSiC (SiSiC) Plates
have superior rapid cooling and rapid heating resistance, wear resistance,oxidation resistance, high bending strength, no falling slag, no crazing, have a long time service life, easy to change, effective to control the uniform temperature inside the kilns.
RBSiC (SiSiC) Burner Tubes are widely used in shuttle kilns, tunnel kilns, roller kilns and other fuel
industry kilns.
RBSiC (SiSiC) Plate Technical Parameter:
item
unit
data
temperature of application
C
1380
density
g/cm3
>=3.02
open porosity
%
<0.1
bending strength
Mpa
250(20C)
Mpa
280(1200C)
modulus of elasticity
Gpa
330(20C)
Gpa
300(1200C)
thermal conductivity
W/m.k
45(1200C)
coefficient of thermal expansion
K-1*10-6
4.5
rigidity
13
acid-proof alkaline
Excellent
