> sintering silicon carbide plate

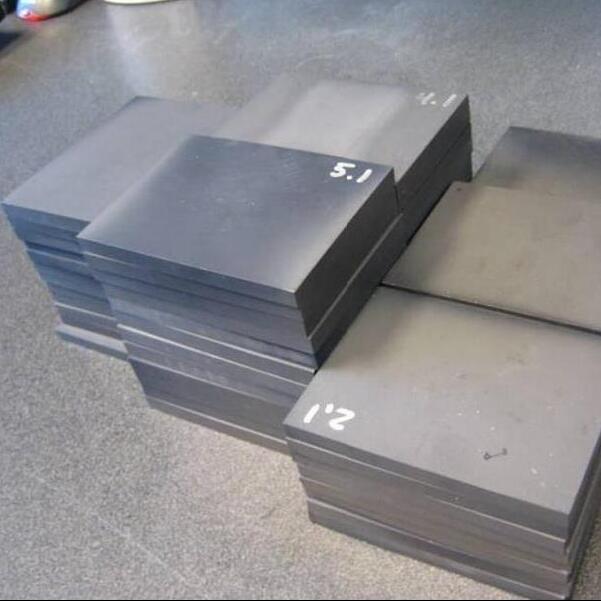

sintering reaction bonded sic plates
- material:sic
- size: 400*300*10mm
- workding temperature: 1360C
- Product description: 1.High temperature tolerance 2.High thermal conductivity 3.Oxidation resistance 4.Corrosion resistance
PRODUCT INTRODUCTION
RBSiC (SiSiC) Plates
have superior rapid cooling and rapid heating resistance, wear resistance,oxidation resistance, high bending strength, no falling slag, no crazing, have a long time service life, easy to change, effective to control the uniform temperature inside the kilns.
RBSiC (SiSiC) Burner Tubes are widely used in shuttle kilns, tunnel kilns, roller kilns and other fuel
industry kilns.
RBSiC (SiSiC) Plate Technical Parameter:
|
item |
unit |
data |
|
temperature of application |
C |
1380 |
|
density |
g/cm3 |
>=3.02 |
|
open porosity |
% |
<0.1 |
|
bending strength |
Mpa |
250(20C) |
|
|
Mpa |
280(1200C) |
|
modulus of elasticity |
Gpa |
330(20C) |
|
|
Gpa |
300(1200C) |
|
thermal conductivity |
W/m.k |
45(1200C) |
|
coefficient of thermal expansion |
K-1*10-6 |
4.5 |
|
rigidity |
|
13 |
|
acid-proof alkaline |
|
Excellent |
